Standard light steel poultry house construction
1.)Environment control of poultry shed
1. Cooling pad system
Evaporative cooling pad system works in the condition of negative pressure, the cooling pad is installed on one side of the wall, fan installed other side. When air flow through cooling pads, the water evaporation absorbs a lot amount of heat.
The height of cooling pad is 1.5-2.2m, length about 13m, the area of cooling pad in chicken house is about 6-8 times than the fans.
2. ventilating system
The main parts of ventilation system is the big fan and small fan. They are controlled by the control system. The NO. of the fans to run was decided by the temperature of the poultry house.
About 200m2 need 1 big fan and 15-20m need a small fan, this is the standard to design the quantity of fans in chicken house.
2.)Easy business
| We can provide the quotation , if you confirm the information as bellow: | |
| Data for Design | Sizes ( Length, Width, Eaves Height ) Wind Speed, Snow Load, Rain Load Earthquake Load |
| Details | Material of Roof, Window, Door Sizes of Window, Door Crane Information ( If have ) |
| Installation | If need assign our engineer on site |
- Place of Origin: qingdao
- Brand Name: Super Herdsman
- Model Number: open type
Chicken house composed of
| 1. Base: | Concrete and steel foundation bolts |
| 2. Column and beam: | material Q345(S355JR)or Q235(S235JR) steel, all bolts connection ,straight cross-section or Variable cross-section |
| 3. Bracing: | X or V or other type bracing made from angle , round pipe etc. |
| 4. Galvanized C or Z purlin: | size from C100~C320,Z160~Z300 |
| 5. Roof and Wall Panel: |
(a) Single colorful corrugated steel sheet --Thickness:0.12-1.2mm; Width: 310-1150mm, etc. (b) Sandwich panel with EPS, rock wool, glass wool , PU etc. insulation -- Thickness around 50mm~150mm; Width 970mm or 950mm |
| 6. Vertical and transversal support: | Q235 angle steel, round bar or steel pipe. |
| 7. wall | Wire meshes with curtain system or sandwich panel |
| 8.Accessories |

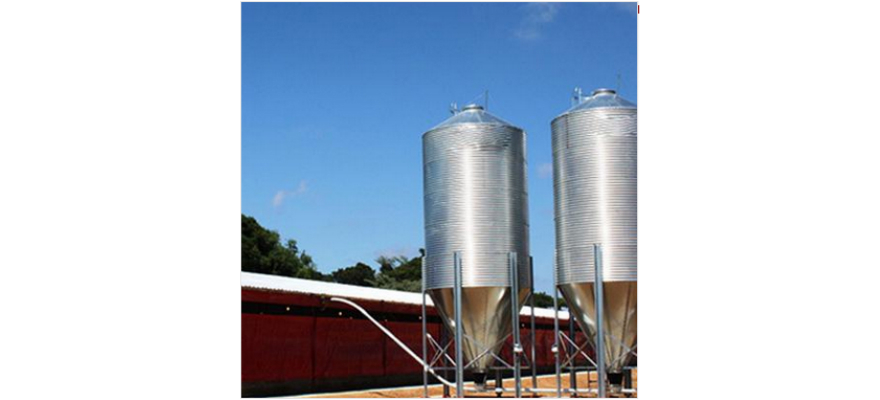

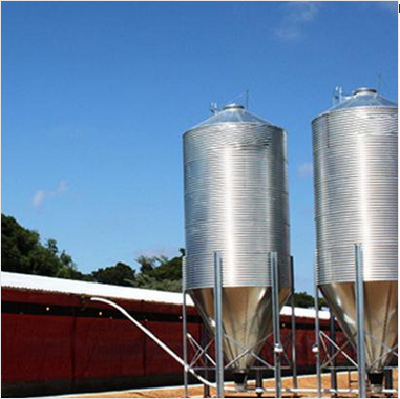

1.Main feed line system 2.Pan feeding system 3.Nipple drinking system 4.Ventilation system 5.Cooling pad system 6.Spraying system 7.Heating system 8.Environment control system |
| 9. life span | 20~25 years |
| 10 packing | Standard container package 40 GP or 40 HQ container |
| 11. size | Customized |
| 12. OEM | Available |
